Gauges
The Simulator allows you to define up to 20 gauges, which can either display the value of the selected SPN or can display textual information based on a set of user-defined conditions.
Gauges
Gauges
The simulator allows you to define up to 20 gauges, which can either display the value of the selected SPN or can display textual information based on a set of user-defined conditions.
Gauge
Each gauge can either display the value of the selected SPN or can display textual information based on a set of user-defined conditions.

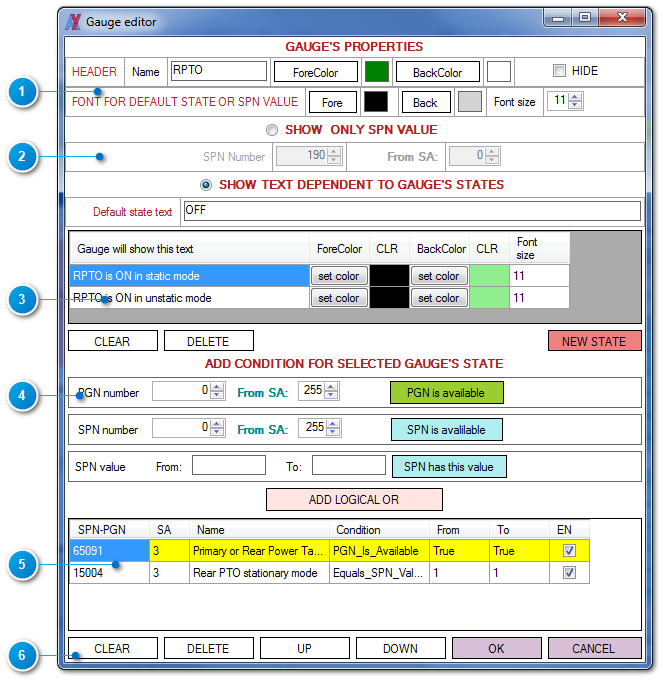

Gauge editor
Defining layout
The user can define a color scheme of gauge to distinguish between different types of gauges.
Conditions
For each gauges, the user can define multiple states, each state can describe multiple conditions.

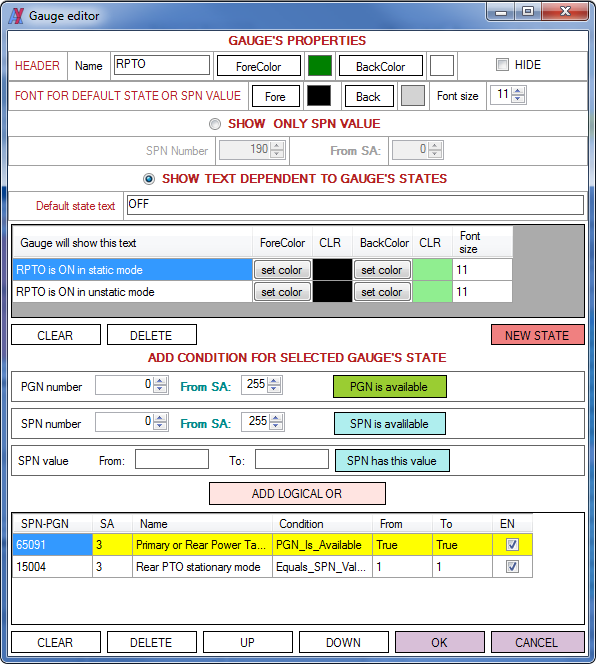

Gauge editor
